Sludge does not behave like water. It carries suspended solids, fibrous matter, and abrasive particles at specific gravities that standard dewatering pumps cannot handle without rapid wear or blockage. Cosmos Pumps manufactures three submersible sludge pump ranges — CNC, CSW, and CSL — designed specifically for industrial sludge environments across effluent treatment plants, sewage treatment plants, construction sumps, mining tailings, and pond desludging applications.
This page explains what qualifies as sludge, which pump range handles your application, and how to specify the right unit.
What Counts as Sludge? A Field Classification
“Sludge” covers a wide range of pumped materials. Selecting the wrong pump type results in frequent clogging, premature impeller wear, or motor failure. The table below classifies the most common sludge types by the parameters that drive pump selection:
| Sludge Type | Typical SG | Solids Size | Solids Content | Application |
|---|---|---|---|---|
| STP primary sludge | 1.02–1.06 | 20–80 mm (fibrous) | 2–6% dry solids | Sewage treatment plant wet wells |
| STP digested sludge | 1.01–1.04 | Fine, 20–40 mm | 3–8% dry solids | Digester transfer, sludge lagoons |
| ETP biological sludge | 1.05–1.15 | Fine to 30 mm | Variable | Effluent treatment plant sumps |
| Construction sump sludge | 1.1–1.3 | Grit, concrete fines, rags | Mixed | Tunnel sumps, basements, foundation pits |
| Drilling sludge (bentonite) | 1.1–1.3 | Fine clay | Heavy | Borehole and micro-tunnelling returns |
| Pond and lagoon sludge | 1.05–1.2 | Fine to medium sediment | 10–30% | Desludging ponds, settling tanks |
| Industrial process sludge | 1.2–2.1 | Fine to coarse abrasive | Up to 70% by weight | Ash handling, mine tailings, coal washeries |
Three parameters determine which pump you need: specific gravity (SG), maximum solid size, and whether solids are abrasive. These directly map to the CNC, CSW, and CSL pump ranges.
Which Cosmos Sludge Pump Is Right for Your Application?

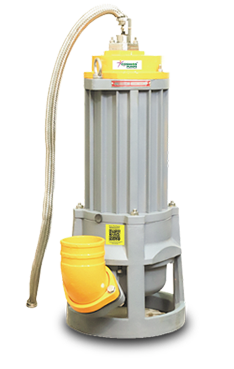

CNC — Non-Clog Submersible Sludge Pump
Best for: Construction sump sludge, manhole cleaning, thick viscous mix, sewage bypass
The CNC handles the thickest, most unpredictable site sludge through a vortex impeller design that keeps solids out of the flow path. Unlike a closed-channel impeller, the vortex design creates a rotating column of fluid that entrains and passes solids without direct impeller contact — eliminating the primary cause of clogging in heavy sludge applications.
Its bottom-discharge configuration allows the CNC to fit inside a 14″ diameter manhole, making it Cosmos’s highest-demand site tool for tunnelling, sewage bypass, and construction sump dewatering where sludge contains fibrous or chunky solids above 40 mm.
Technical specifications:
| Parameter | Value |
|---|---|
| Shut-Off Head | 22 M – 30 M |
| Flow Rate | 1,250 – 1,500 LPM |
| HP Range | 6 – 20 HP |
| Max Solid Size | Up to 70 mm (bottom discharge) |
| Max Specific Gravity | 1.2 |
| pH Range | 5 – 8 |
| Cable | 50 sq mm H07RNF (10 m) |
| Volute Material | SS-304 |
| Impeller | Nitride-hardened SS-410 (HRC 52–55) |
| Mechanical Seals | Twin SS seals |
| Motor Insulation | Class H (180°C) |
| Option | Sacrificial zinc anode for saline/industrial sludge |
Specify CNC when: Sludge contains solid lumps above 40 mm, the pump must fit into a manhole or sump narrower than 500 mm, or the application is sewage bypass on a live sewer.
CSW — Sewage Submersible Sludge Pump
Best for: STP and ETP wet well transfer, municipal sewer bypass, permanent pump station installation
The CSW is Cosmos’s heavy-duty sewage pump rated for solids up to 100 mm at specific gravities up to 1.7 — the highest SG in the sewage pump class. At 2–200 HP and 775–33,000 LPM, it scales from a single wet well at a residential complex to a full municipal STP pump station. An auto-coupling option enables submerged, bolt-free installation for permanent, maintenance-accessible pump stations.
The CSW is the standard pump for STP primary sludge transfer, where fibrous solids and STP rag content demand a pump that will not clog over extended, unattended duty cycles. Thermal sensor and optional moisture sensor protect the motor in continuous-duty applications.
Technical specifications:
| Parameter | Value |
|---|---|
| Shut-Off Head | 5 M – 60 M |
| Flow Rate | 775 – 33,000 LPM |
| HP Range | 2 – 200 HP |
| Max Solid Size | 20 – 100 mm |
| Max Specific Gravity | 1.7 |
| Shaft | SS410 high-torsional-strength |
| Impeller | SS or CI (application-dependent) |
| Mechanical Seals | Dual TC vs TC mechanical seal + oil seal |
| Bearings | Angular / Radial / Tapper ball bearings (high-temp grease) |
| Motor Insulation | F-class (155°C) standard; H-class optional |
| Lifting Hook | SS316 |
| Options | Auto-coupling, moisture sensor, temperature sensor |
Specify CSW when: Sludge is primarily sewage-based or biological (STP/ETP), solids are fibrous or rag-type at 20–100 mm, and SG does not exceed 1.7. For permanent pump station installations or municipal wet wells, specify the auto-coupling variant.
CSL / CSL-TV — Hi-Chrome Slurry Submersible Pump
Best for: Industrial process sludge, mining tailings, ash transfer, abrasive ETP effluent, harbour dredging
The CSL is Cosmos’s most aggressive sludge and slurry pump. Its wet-end components are cast in 27% hi-chrome alloy — the hardest material class available in submersible pumps — and it is rated for fluids carrying up to 70% solids by weight at specific gravities up to 2.1. This is the only correct specification when ETP sludge contains abrasive mineral particles, when mining sumps contain ore fines, or when thermal power station ash must be transferred continuously.
The CSL-TV (Twin Volute) variant addresses radial thrust forces that arise at high HP and high flow. Its twin-volute hydraulic design balances radial load, extending bearing life and mechanical seal life under 24/7 high-abrasion duty. For slurry pump applications above 50 HP or at continuous SG > 1.8, CSL-TV is the recommended specification.
Technical specifications:
| Parameter | Value |
|---|---|
| Shut-Off Head | 27.5 M – 52.5 M |
| Flow Rate | 1,584 – 5,834 LPM |
| HP Range | Up to 100 HP |
| Max Solids (by weight) | Up to 70% |
| Max Specific Gravity | 2.1 |
| Material of Construction (MOC) | 27% Hi-Chrome alloy |
| CSL-TV | Twin-volute for improved hydraulic balance and extended bearing life |
Specify CSL when: Sludge is dense (SG > 1.5), abrasive (contains grit, ore, ash, or chemical precipitates), or carries solids above 50% by weight. For 24/7 high-HP applications, specify CSL-TV.
Sludge Pump Selector — Quick Reference
| Parameter | CNC | CSW | CSL / CSL-TV |
|---|---|---|---|
| Max Solid Size | 70 mm | 100 mm | 70% by weight |
| Max Specific Gravity | 1.2 | 1.7 | 2.1 |
| Flow Range | 1,250–1,500 LPM | 775–33,000 LPM | 1,584–5,834 LPM |
| Head Range | 22–30 M | 5–60 M | 27.5–52.5 M |
| HP Range | 6–20 HP | 2–200 HP | Up to 100 HP |
| Wet-End MOC | SS-304 / SS-410 | SS or CI | 27% Hi-Chrome |
| Impeller Design | Vortex (non-clog) | Closed-channel | Hi-chrome closed |
| Auto-coupling option | No | Yes | No |
| Twin-volute option | No | No | Yes (CSL-TV) |
| Primary Application | Construction, manholes, sewage bypass | STP/ETP wet wells, municipal | Mining, ash, ETP abrasive, dredging |
Sludge Pump Applications by Industry
Effluent Treatment Plants (ETP)
ETP sumps collect biological sludge at SG 1.05–1.15 with moderate fibrous solids. The CSW is the standard specification for biological ETP sludge transfer. Where an ETP processes chemical or mining effluent containing abrasive mineral fines — common in pharma, steel, and mining sector ETPs — the CSL is specified for its hi-chrome wet-end that resists abrasive wear. India’s Central Pollution Control Board (CPCB) mandates zero liquid discharge (ZLD) compliance for many industrial ETPs, driving permanent pump station installations where CSW auto-coupling is preferred.
Sewage Treatment Plants (STP)
Primary sludge in STP wet wells carries fibrous solids at 20–80 mm at low SG (1.02–1.06). STP sludge pumping is the core CSW application. High-capacity municipal STPs — particularly under AMRUT 2.0 and Smart City projects — use CSW at 100–200 HP with auto-coupling for maintenance-free sub-surface installation. Cosmos has supplied CSW pumps across municipal STP projects in Haryana, Delhi NCR, and across multiple state PHE departments. The CPHEEO Sewerage Manual specifies submersible pump standards applicable to all STP wet well installations in India.
Construction Sites and Tunnel Sumps
Excavation sludge mixes grit, cement slurry, construction debris, and groundwater seepage. The CNC is the standard site sump pump for this environment — its vortex impeller handles fibrous and lumpy construction debris up to 70 mm, and its 14″-compatible body fits the tight sumps common in urban tunnel and metro projects. CNC is also the standard sewage bypass pump deployed across Cosmos’s North India municipal projects.
Mining Tailings and Coal Washeries
Coal washery tailings, mine pit sump drainage, and ore-processing effluent carry abrasive particles at SG 1.5–2.0. Standard cast iron impellers erode rapidly in this environment — typically within weeks on abrasive tailings. The CSL and CSL-TV are the only correct specification for sustained mining sludge duty. Cosmos’s CSL range is active at thermal power stations and coal washeries across Central India. Submersible pump performance standards are governed by BIS IS 9079, the Bureau of Indian Standards specification for submersible pump sets.
Thermal Power Stations
Fly ash slurry and bottom ash transfer from thermal power station sumps is a direct CSL application. Bottom ash carries SG 1.8–2.0 and is highly abrasive — hi-chrome MOC is mandatory for any pump expected to survive beyond the first maintenance cycle. For continuous duty on ash sumps, CSL-TV is recommended.
Pond and Lagoon Desludging
Settling ponds, lagoons, and stormwater retention sumps accumulate sediment at SG 1.05–1.3. CNC handles lighter pond sludge for short-duration desludging. Where accumulated fine sediment has compacted and hardened, or where the pond receives abrasive industrial run-off, CSL is specified. Cosmos’s rental fleet includes both CNC and CSL for pond desludging contracts.
Harbour and Canal Construction
Harbour desludging and canal maintenance moves sand, silt, and clay at SG 1.2–1.5. CSL handles this effectively; for very high flow requirements, CSL-TV is the preferred specification. Cosmos has supplied sludge pumps for harbour construction in India and export markets including Nigeria, Bangladesh, and the UAE.
Why Cosmos Pumps for Sludge Applications?
Cosmos Pumps Pvt. Ltd. manufactures the CNC, CSW, and CSL ranges at its 25,000 sq. ft. ISO and CE certified facility in Faridabad, Haryana. With 13 years of deployment across construction, mining, municipal, and power sectors — and a current rental fleet of 500+ submersible pumps — Cosmos provides both equipment supply and end-to-end sludge pump system support.
What sets Cosmos apart:
- Hi-chrome casting in-house: 27% hi-chrome wet-end components for the CSL range are manufactured and quality-controlled at Faridabad — not outsourced
- Pan-India rental fleet: 500+ submersible pumps available for short-notice deployment; CNC and CSL units in active rental fleet
- EPEC services: full engineering, procurement, execution, and commissioning for sludge pump systems — from sump design to commissioning
- CosmoSmart™ IoT: optional remote monitoring for pump health, flow data, and alert management on STP/ETP permanent installations
- After-sales support: seal kits, wear part kits, and instant service packs for CNC, CSW, and CSL ranges available nationally
- Export capability: sludge pump supply and EPEC to UAE, Nigeria, Bangladesh, and 20+ countries
Request a Sludge Pump Price
Sludge pump pricing is driven by HP, head requirement, solids percentage, SG, and material of construction (MOC). The Cosmos sludge pump range starts at 6 HP (CNC) and scales to 200 HP (CSW) and 100 HP (CSL). Pricing is available on request — we do not publish fixed price lists because configuration determines cost.
Request a quotation:
- WhatsApp: +91 99333 22238
- Email: cosmos@cosmospumps.com
- HQ: I-23 DLF Industrial Area-I, Faridabad, Haryana
Submit your application details — sludge type, SG, solids size, required flow, and total head — and our engineering team will confirm the correct model and price.
Frequently Asked Questions — Sludge Pumps
What is a sludge pump used for?
A sludge pump moves thick, viscous fluids that contain suspended solids, fibrous matter, or abrasive particles — materials that standard dewatering pumps cannot handle without clogging or rapid wear. Common industrial applications include sewage treatment plant (STP) wet well transfer, effluent treatment plant (ETP) sump emptying, construction sump dewatering, mining tailings transfer, thermal power station ash handling, and pond or lagoon desludging.
What is the difference between a sludge pump and a slurry pump?
“Sludge” refers to biological waste, sewage, or moderately dense industrial by-products at SG below 1.5. “Slurry” refers to denser, more abrasive fluid-solid mixtures — mining tailings, fly ash, ore-processing effluent — at SG 1.5–2.1. The Cosmos CSL slurry pump covers both dense sludge and true slurry applications. For lighter sludge at SG below 1.7, the CSW sewage pump is typically specified. The key decision factor is abrasiveness: if hard mineral particles are present, hi-chrome MOC (CSL) is required.
What is the difference between a sewage pump and a sludge pump?
Sewage pumps — such as the Cosmos CSW — are designed for sewage and STP biological sludge with fibrous solids up to 100 mm at SG up to 1.7. “Sludge pump” is the broader category, encompassing non-clog vortex pumps (Cosmos CNC) for thick construction sludge, sewage pumps (CSW) for STP/ETP sludge, and hi-chrome slurry pumps (CSL) for dense abrasive industrial sludge. All three Cosmos ranges serve different segments of the sludge pump application space.
Can a submersible pump pump sludge?
Yes. All three Cosmos sludge pump ranges — CNC, CSW, and CSL — are submersible designs. Submersible sludge pumps are the industry standard because they are lowered directly into the sump or pit, eliminating the need for suction pipework and priming. The sealed motor housing is rated for full submersion, and the cable entry is waterproofed to prevent insulation failure in wet sumps.
How do I choose the right sludge pump?
Select on four parameters: (1) Specific gravity (SG): SG below 1.2 → CNC; SG 1.2–1.7 → CSW; SG above 1.7 → CSL. (2) Maximum solid size: CNC handles lumps up to 70 mm; CSW up to 100 mm fibrous solids. (3) Abrasiveness: if the sludge contains grit, ash, or mineral fines, specify hi-chrome CSL regardless of SG. (4) Flow and head: confirm your system curve against the pump performance curves. Contact Cosmos Pumps for a free selection check.
What is the price of a sludge pump in India?
Indicative price ranges (2026): CNC non-clog sludge pump starts at approximately ₹50,000–₹80,000 (6–10 HP). CSW sewage pumps range from ₹30,000 (2 HP) to several lakhs (100–200 HP). CSL hi-chrome slurry pumps are priced on application — hi-chrome MOC carries a material cost premium over standard cast iron. Contact Cosmos Pumps for a configuration-specific price-on-request quotation.
How does a non-clog (CNC) sludge pump prevent blockage?
The Cosmos CNC uses a vortex (recessed) impeller design. The vortex impeller generates a rotating fluid column that entrains solids through the pump without those solids contacting the impeller directly. This allows the CNC to pass solid lumps up to 70 mm — including rags, fibrous debris, grit, and construction waste — without clogging. The bottom-discharge configuration further reduces the risk of solids settling onto the impeller during standby.
Is a sludge pump the same as a dewatering pump?
No. Standard dewatering pumps — such as the Cosmos CDW — are designed for clean to moderately dirty water with small suspended solids (4–12 mm) at SG up to 1.1. They clog rapidly on fibrous sludge and wear quickly at SG above 1.2. Sludge pumps are purpose-built for heavier material: larger solids, higher SG, and abrasive content. If your dewatering application involves thick, viscous, or high-solid-content material, specify a CNC, CSW, or CSL — not a CDW.
